HOT STICK TESTER
?  Test hot sticks wet or dry.  The tester has a selector switch
for wet or dry tests and a dual range scale which gives the
operator leakage current values in micro amps.
?  Utilizing a 2,500 volt output, the meter is calibrated to in-
dicate the leakage values that would be present if 75KVAC
were applied to a 12” section of the fiberglass tool for the
wet test and 100KVAC per foot for the dry test.
?  Portable and lightweight for easy use.  Two models avail-
able 120 volt or 220 volt systems.  The tester is designed to
protect the operator while in use.

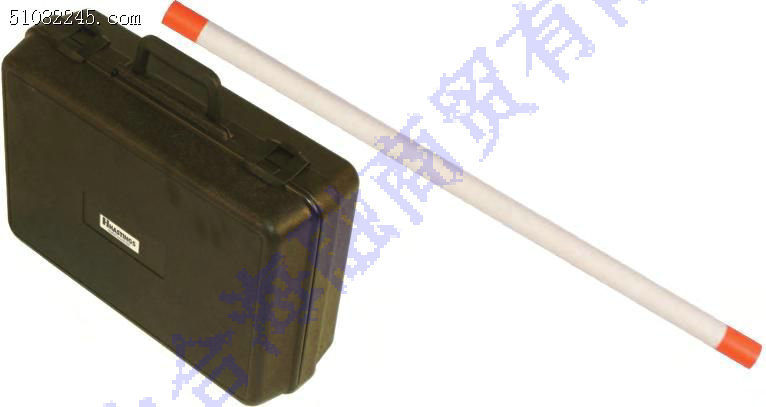

?  The tester comes complete with a padded carrying case and
directions for proper use.  A testing bar is also provided to
ensure the tester is working properly.
?  Application and training video included with purchase.

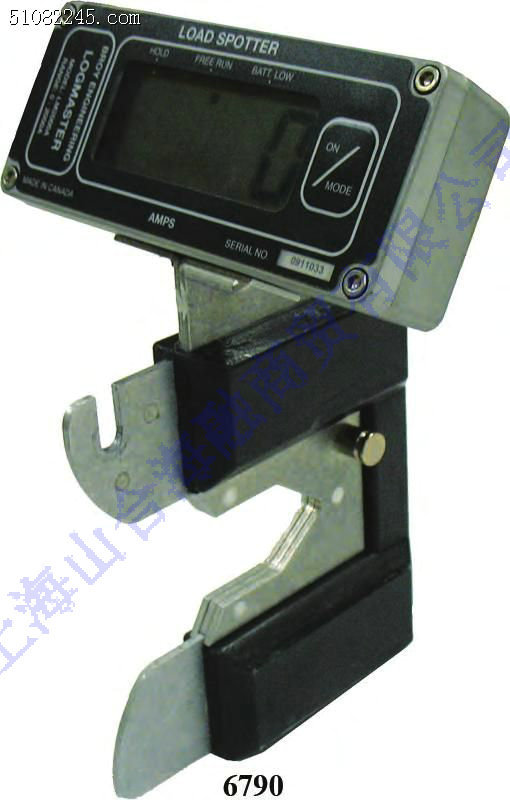

AMMETER
?  Designed for use with universal hot sticks.
?  Large digital display, numbers are 1” high and 1/2” wide, can
be seen 30’ to 40’ away.  Has lighted background for night use.
?  For use on low voltage and high voltage lines (tested to
345KV).
?  The hold feature captures current readings when applied with
bescoping hot sticks from distances.
?  0 - 2000 amp range
?  Large digital display, numbers are 1” high and 1/2” wide
?  Displays either Hold or Free Run readings
?  Accuracy is ± 1%
?  Wide temperature operation -4°F to 104°F (-20°C to 40°C)
?  Snap in and out adapter enables the ammeter to be used on
conductors up to 2” O.D.
?  Low battery indicator
?  Weather proof aluminum housing
